    TA500 AC-Multipoint drive TCU

      产品特点:

  • 产品介绍

    TA500 AC-Multipoint drive TCU(图1)

    DESCRIPTION

    TA500 is SmarTracker developed multi-point driven tracking controller,The system includes a master box and a slave box, The master box along the motor in the middle control, two slave box on both sides to drive motor individual , and master box accept 90 ~ 230 VAC power supply, After internal conversion, output 24 VDC to the slave box, RS485 cable connection is used between the master box and the slave box to communicate, so as to achieve three synchronous drivers, three motor synchronization accuracy control at < 1 °.

    TA500 is a highly intelligent tracking controller. According to the local longitude, latitude, and time, the program automatically calculates the sun's trajectory at any time and the azimuth and altitude of the location. In the automatic tracking mode, the system will automatically issue command tracking commands to control the operation of electric actuators according to the current position of the sun, so that photovoltaic modules can track the sun in real time and increase power generation.

    The product has intelligent functions such as wireless one-key upgrade, wireless ad hoc network, anti-shadow tracking, wind and snow protection, over-current and over-temperature protection, and is equipped with SmarTracker NCU and SCADA to realize the system automatic working modes switch under different complex weather conditions, protecting the photovoltaic bracket in the case of strong wind, heavy rain, and heavy snow. The whole system does not require manual intervention and runs fully automatically.




    FEATURES

    Ø Power supply:AC-powered 90~260VAC;

    Ø Built-in tilt sensor module, no need for external connection;

    Ø Complete protection functions: angle limit protection, over temperature protection, overload protection, electronic short circuit protection and anti-reverse connection protection;

    Ø IP65 protection;

    Ø ZigBee&Lora two wireless modes are optional;

    Ø The parameter settings are saved after power-off, no need to repeat settings, convenient and simple;

    Ø Wide temperature (-40~60)

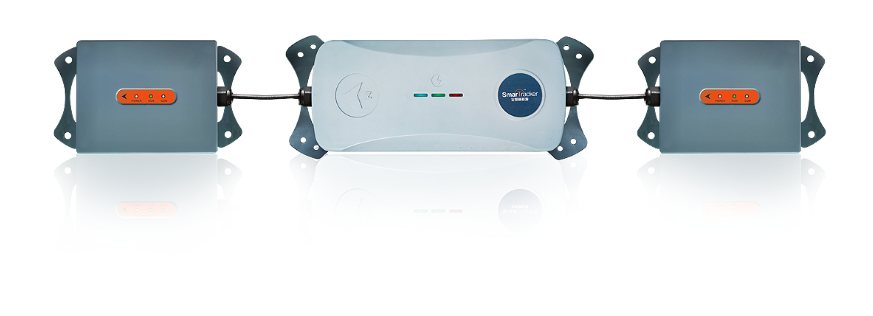

    APPEARANCE OF FUNCTION

    TS180-300H STRING-POWER TCU 300W/750V(图3)



    TRACKING CONTROLL SYSTEM SOLUTION DIAGRM

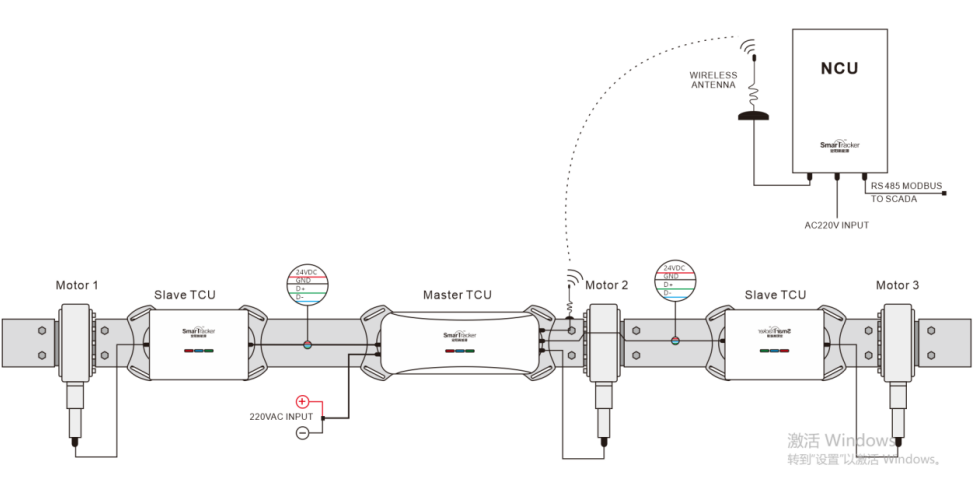

    The difference between multi-point drive tracking controller and single-point drive tracking controller is that the multi-point tracking controller adds two motors and two controllers. The master TCU uses AC220V power supply, RS485 communication is adopted between master and slave to realize synchronous control,The slave TCU will get 24VDC from master TCU through the cable, The communication distance between master and slave is less than <100 m, The controller is installed as close to the motor as possible,The master TCU and NCU adopts the wireless communication, synchronization control scheme suitable for slew motor and linear motor, But the algorithm is different, Users need to communicate in advance in order products, our team can provide users with professional solutions.


    TA500 AC-Multipoint drive TCU(图3)

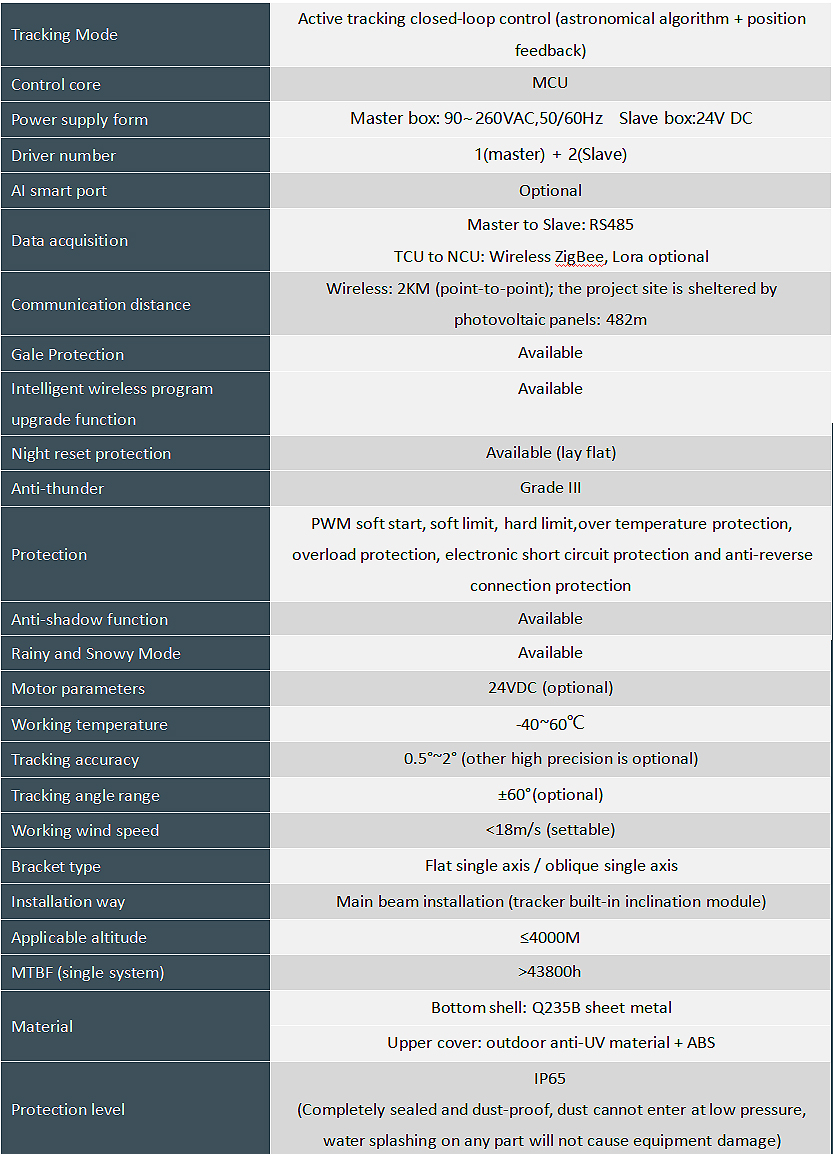

    规格参数

    TA500 AC-Multipoint drive TCU(图1)

    应用场景

    视频展示
    选型指南

    TS500-150, Driving Power150W, 3motor output, String-power 1500V supply

    ------------------------------------------------------------------------------------------------------

    TA500-150, Driving Power150W, 3motor output, AC 90~260V supply



    资料下载
